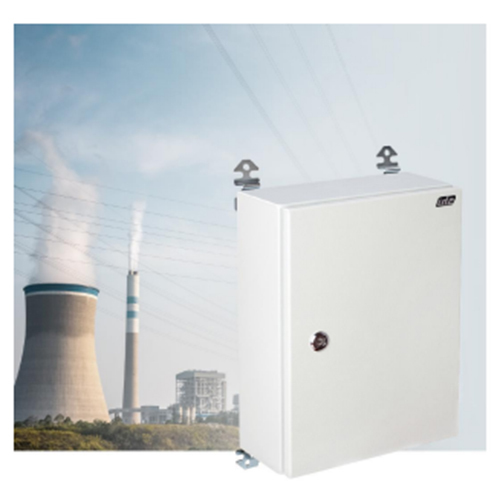

IP66 Wall-Mounting Rolled Steel Cabinet

Get a Price/Quote

MOQ : 1 Piece

IP66 Wall-Mounting Rolled Steel Cabinet Specification

Regional Style
European/International Standard

Color
Grey (RAL 7035, powder-coated)

Design
IP66-rated sealed enclosure with hinged door

Width
Enclosure-specific (typically 400-800 mm) Millimeter (mm)

Weight
Approximately 18-30 kg depending on model Kilograms (kg)

Room Type
Control Room, Data Center, Industrial Area

Dimension (L*W*H)
600 x 400 x 250 mm (standard), Custom sizes available Millimeter (mm)

Brand Name
Generic/Customized

Technology
Laser-cut/formed sheet metal fabrication, powder coating

Foldable
No

Height
250 mm, custom heights available Millimeter (mm)

Feature
Other

Primary Material
High-Quality Cold Rolled Steel

Furniture Type
Wall-Mounting Cabinet

Metals Type
Rolled Steel

Inflatable
No

Appearance
Matte powder-coated finish

Cable Entry
Gland plates at base/top for cable management

Accessories
Mounting plate, earth bolt, door stays, customized shelves on request

Protection Class
IK10 (Impact resistance according to IEC 62208)

Standards Compliance
IEC 60529, EN 62208, RoHS compliant

Surface Treatment
Degreasing, phosphating, electrostatic powder coating

Operating Temperature Range
-40C to +80C

Ventilation
Optional filtered vent or fan cut-outs

Mounting Type
Wall-Mounted with rear holes for easy installation

Door Type
Single front door, reinforced, secured with lock and key

Application
Suitable for housing electrical/electronic equipment, control panels, junction boxes

IP Rating
IP66 (Total protection against dust and powerful water jets)

Door Seal
Polyurethane or EPDM gasket for weatherproof sealing

Lock Type
3-point or cam lock mechanism

Customization
Size, color, cut-outs, and accessories can be customized

IP66 Wall-Mounting Rolled Steel Cabinet Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About IP66 Wall-Mounting Rolled Steel Cabinet

Reserve an unassailable level of protection for your critical electronics with the IP66 Wall-Mounting Rolled Steel Cabinet-crafted to deliver inestimable reliability. Each cabinet, constructed from eminent cold-rolled steel and finished in a robust powder-coated matte grey, ensures total defense against dust, water, and impacts (IK10). Try now the industry-standard enclosure that secures your valuable equipment with a reinforced, lockable front door and customizable features. Get rapid installation, efficient cable management, and guaranteed operational safety, making it the preferred solution for demanding industrial and commercial settings.

Extra Features and Competitive Advantages

This IP66 Wall-Mounting Rolled Steel Cabinet is designed with special features such as a single reinforced front door secured by a 3-point lock, weatherproof sealing with polyurethane or EPDM gaskets, and robust cable entry options through gland plates. Optional ventilation and customized shelves boost its versatility. The cabinet's powder-coated finish, impact resistance, and customization options offer inestimable value, setting it apart as an eminent choice for those seeking durability, security, and adaptability in industrial or commercial environments.

Certifications, Transport, and Sample Policy

Compliant with IEC 60529, EN 62208, and RoHS, this cabinet guarantees reliability and adherence to international standards. Goods transport is efficiently handled from major Indian FOB ports, ensuring prompt delivery and safe handling. Valuation of the product assures you the lowest price for such distinguished quality. A transparent sample policy makes it easy to request standard samples before large orders, so you can confidently evaluate fit and finish prior to bulk purchase.

FAQ's of IP66 Wall-Mounting Rolled Steel Cabinet:

Q: How does the IP66 rating benefit electronic equipment housed inside this cabinet?

A: The IP66 rating guarantees total protection against dust ingress and high-pressure water jets, ensuring your sensitive electronic or electrical equipment remains safe in even the harshest industrial or outdoor environments.

Q: What customization options are available for the wall-mounting rolled steel cabinet?

A: You can request custom sizes, colors, cut-outs, and accessories such as shelves or special mounting plates, allowing the enclosure to suit your specific application needs perfectly.

Q: When should I choose a cabinet with IK10 impact resistance?

A: Choose IK10 impact resistance when your application site is prone to accidental impacts or vandalism, as it certifies the cabinet can withstand strong mechanical shocks and physical abuse.

Q: Where can this cabinet be installed?

A: It is ideal for installation in control rooms, data centers, and industrial areas-wherever reliable, weatherproof, and dustproof protection is required for electronic and electrical equipment.

Q: What is the process for ordering and transporting these cabinets?

A: Contact the supplier or trader to reserve your cabinet. Once ordered, goods are shipped from Indian FOB ports, with careful packaging and efficient logistics ensuring safe and reliable transport to your site.

Q: What are the primary benefits of the locking mechanisms provided?

A: The cabinet offers either a robust 3-point or cam lock system, safeguarding your equipment from unauthorized access and enhancing operational security.
