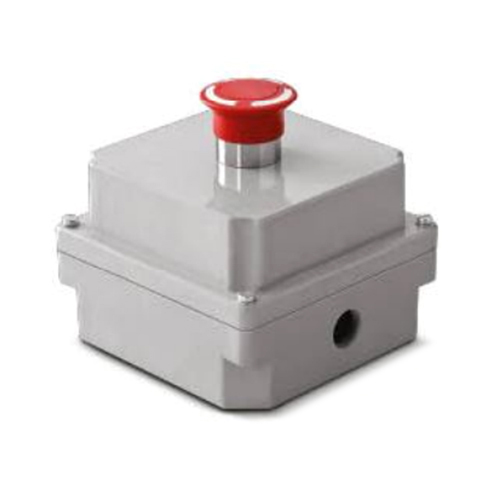

Local Control Station With Push Buttons

Get a Price/Quote

MOQ : 1 Piece

Local Control Station With Push Buttons Specification

Control System
Manual Control

Current Rating
10A

Panel Type
Surface Mount

Cooling System
Natural Air Cooled

Features
Shock Proof, Weather Resistant, Dust Proof, Easy Installation

Rated Operation Voltage
415V AC

Thickness
3 mm (Enclosure) Millimeter (mm)

Base Material
Other

Protection Class
Class II

Cabinet Material
Polycarbonate / ABS

Rated Current
10A Ampere (amp)

Protection Level
IP 65

Cover Material
ABS Plastic

Connectivity Type
Wired

Way
Single / Double / Multiple way as required

Operating Voltage
220V / 415V AC Volt (V)

Rated Insulation Voltage
690V AC

Components
1 NO + 1 NC Push Button, Terminal Block, Cable Gland

Product Type
Local Control Station With Push Buttons

Material
Other

Surface Finish
Matt / Glossy Finish

Standard
IEC 60947-5-1

Surface Color
Grey (Body), Black (Cover)

Rated Voltage
415V AC Volt (V)

Frequency (MHz)
50 Hz Hertz (HZ)

Maximum Output Current
10A Ampere (amp)

Dimension (L*W*H)
120 x 80 x 70 mm (typical) Millimeter (mm)

Application
Industrial local motor start/stop control

Mounting
Wall / Panel Mounted

Electrical Life
50,000 Operations

Mechanical Durability
1 Million Operations

Cable Entry
1 x M20 Cable Gland (Standard), Knockouts Provided

Terminal Capacity
2.5 mm

Weight
230 g (Approx.)

Ambient Humidity
90% RH at 40C

Operating Temperature Range
-10C to +55C

Fixing Type
4 Screw Mounting Holes

Number of Push Buttons
2 (Green for Start, Red for Stop)

Local Control Station With Push Buttons Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Local Control Station With Push Buttons

Redeem peerless reliability with this magnificent Local Control Station With Push Buttons, crafted for immaculate performance in demanding industrial settings. With two customizable polycarbonate actuators (green for start, red for stop), this unit is easy to procure for both new installations and retrofits. Its IP65-rated enclosure, built from high-grade polycarbonate/ABS, endures extreme conditions, assuring mechanical durability of 1 million operations. Featuring a four-screw mounting for steadfast fixation, knockouts for versatile cable entry, and weather-resistant, shockproof features, this control station upholds industry standards while delivering distinguished, secure manual motor control.

Versatile Applications Across Commercial Surfaces

This Local Control Station with Push Buttons excels in commercial and industrial environments as an easy-to-use manual control solution. Ideal for surface-mounted wall or panel installation, it is commonly used to operate and stop industrial motors, conveyors, and machinery. The unit is suitable for factories, workshops, and warehousing facilities, ensuring streamlined operations where local start/stop control is needed. Its weather-resistant design makes it highly adaptable on both indoor and outdoor surfaces.

Reliable Procurement and Secure Supply Logistics

We offer a seamless procurement process for the Local Control Station With Push Buttons across India. With robust supply ability, we ensure each unit is securely packaged and shipped from our FOB port to safeguard immaculate condition during transit. Prompt deliveries and careful handling guarantee that every order is handed over efficiently to our valued clients within the main domestic market. Trust in our reliable service for continuous, timely, and secure product provision.

FAQ's of Local Control Station With Push Buttons:

Q: How do I install the Local Control Station With Push Buttons?

A: The station is designed for straightforward installation, featuring four screw mounting holes and knockouts for cable entry. Simply fix it on any suitable wall or panel surface with the appropriate hardware, and connect the wiring according to your application requirements.

Q: What are the primary benefits of using this Local Control Station?

A: This control station offers peerless durability, mechanical endurance, and weather-resistant features. Its customizable configuration, shockproof polycarbonate construction, and protection class II rating ensure reliable, safe, and long-lasting manual motor control in industrial settings.

Q: Where can this control station be effectively deployed?

A: It is ideally suited for industrial facilities, including factories, assembly lines, warehouses, and workshops where local control of machinery or motors is required. Its IP65 rating ensures protection in both indoor and outdoor applications.

Q: How does the control system operate?

A: The unit features a manual wired control system, with a green push button for starting and a red button for stopping. Each button uses a 1 NO + 1 NC contact configuration, providing immediate and secure command over connected equipment.

Q: What is the process for procuring this product?

A: You can procure the Local Control Station With Push Buttons through our service as a supplier, trader, or provider. Orders are packaged securely, shipped via FOB port, and handed over efficiently, ensuring intact delivery within the main domestic market in India.

Q: When should I consider replacing or upgrading the unit?

A: Consider upgrading or replacing the unit if the number of required operations nears its mechanical or electrical life limit, or if changes in project demands require additional customization or enhanced capacity.
