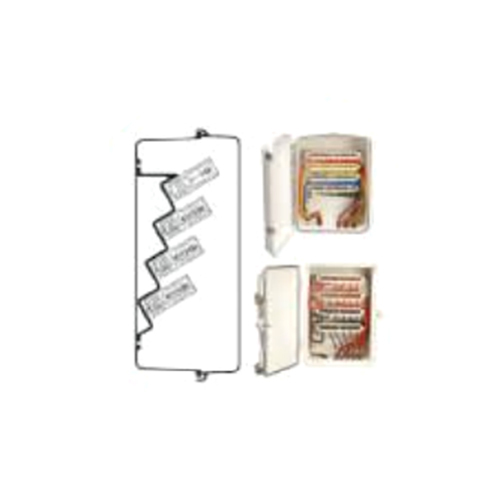

Spring Loaded Constant Pressure Multi-Connection Busbar System

Get a Price/Quote

Spring Loaded Constant Pressure Multi-Connection Busbar System Specification

Product Type
Spring Loaded Constant Pressure Multi-Connection Busbar System

Material
High Conductivity Copper Alloy

Protection Level
IP54

Surface Treatment
Galvanized/Copper plating

External Size
Customizable

Thickness
10 mm

Paint Finishing
Electrostatic Powder Coating

Accuracy
2%

Dimension (L*W*H)
500 mm x 120 mm x 150 mm

Weight
8.5 kg

Color
Silver / Copper

Flammability Class
UL94 V-0

Rated Voltage
690V AC

Insulation Material
High-Impact Polycarbonate

Contact Pressure
Constant, Spring-Loaded

Number of Connections
Up to 12

Rated Current
1000A

Mounting Type
Panel or Wall Mounted

Frequency
50/60 Hz

Busbar Width
100 mm

Temperature Range
-20°C to +80°C

Connection Type
Spring Loaded Multi-Point

About Spring Loaded Constant Pressure Multi-Connection Busbar System

Introducing the Spring Loaded Constant Pressure Multi-Connection Busbar System - an unprecedented innovation at the forefront of electrical engineering. Spotlight your projects with a brilliant solution, engineered for robust performance at 1000A, 690V AC. With up to 12 spring-loaded multi-point connections, this matchless system utilises high-impact polycarbonate insulation and boasts IP54 protection. Benefit from constant contact pressure and optimal conductivity via galvanized/copper-plated, high-conductivity copper alloy. Advance Purchase options allow you to utilise this offer at unbeatable value from leading suppliers, traders, and service providers across India.

Key Features and Areas of Application

Unveil the advanced capabilities of the Spring Loaded Constant Pressure Multi-Connection Busbar System. This robust busbar offers a temperature range of -20C to +80C, high IP54 protection, and supports up to 12 simultaneous connections, making it ideal for demanding industrial settings. With high-impact polycarbonate insulation and electrostatic powder coating, it is perfect for electrical distribution panels, control rooms, and high-load machinery - ensuring reliable power delivery and unmatched operational safety.

Export Market, Sample Policy, and Certifications

The Spring Loaded Constant Pressure Multi-Connection Busbar System enjoys high market value in international markets, with regular arrivals in Asia, Africa, and Europe. Our sample policy ensures clients experience the product's quality firsthand before confirming a charge for full shipment. Certified to meet UL94 V-0 flammability class standards, every unit provides dependable safety and performance. Trust our expertise as your service provider, supplier, and trader in India for seamless export processes.

FAQ's of Spring Loaded Constant Pressure Multi-Connection Busbar System:

Q: How does the spring-loaded constant pressure mechanism benefit the busbar system?

A: The spring-loaded constant pressure mechanism ensures reliable and stable contact at each connection point, reducing maintenance needs, preventing overheating, and enhancing the safety and efficiency of your electrical installations.

Q: What areas are ideal for utilising this busbar system?

A: This system is perfect for high-capacity panels, control rooms, and industrial machinery requiring consistent high-current connections in diverse environments with a temperature range from -20C to +80C.

Q: When should I consider Advance Purchase of this busbar system?

A: Advance Purchase is recommended when planning large-scale installation projects or seeking to utilise offer-based pricing for enhanced cost efficiency and assured stock availability before project commencement.

Q: Where can the Spring Loaded Multi-Connection Busbar System be mounted?

A: It is designed for flexible installation and can be mounted on panels or walls, allowing adaptability to various site requirements and space constraints.

Q: What certifications support the safety and reliability of this busbar system?

A: The system is UL94 V-0 certified for flammability resistance, ensuring high safety standards. Its insulation is made from high-impact polycarbonate and the system offers IP54 protection for dust and water resistance.

Q: What is the process to request samples for evaluation?

A: Clients can request product samples under our sample policy to verify build and performance quality before making a full purchase. Please contact your service provider or supplier to start the process.
